EdgePal Sharpening System

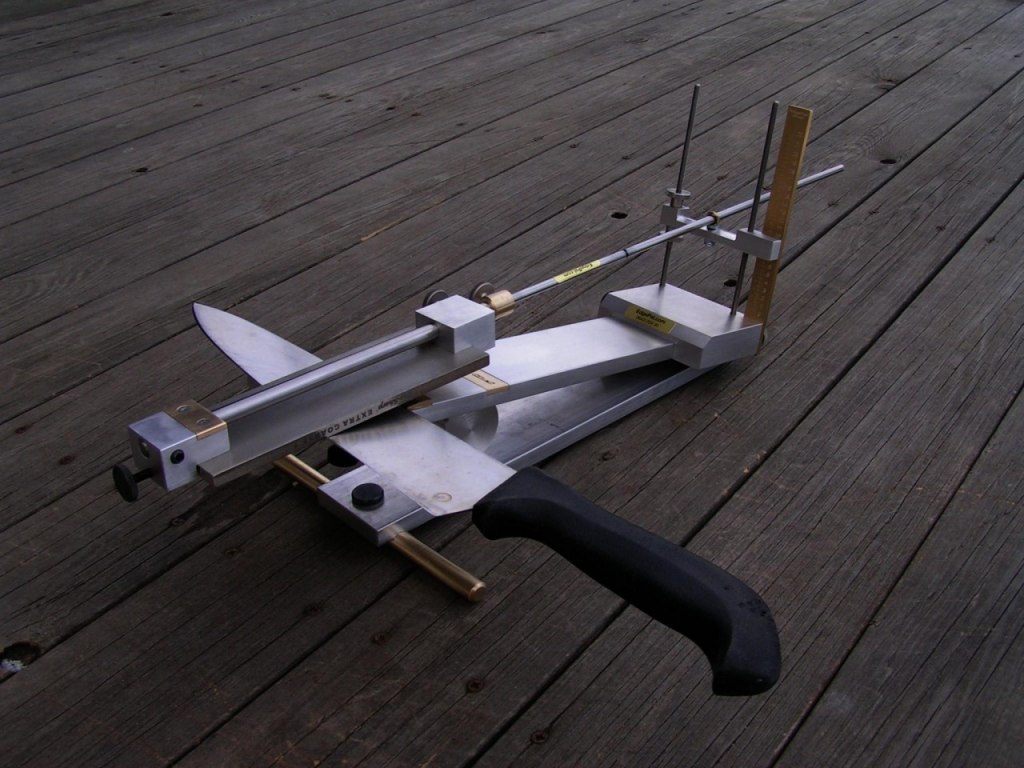

EdgePal Chef is a bench tool designed for precision sharpening. Chef can in principal sharpen all knifes, all sizes.



Chef has a built in protractor to ensure you get the precise degree grind that you desire every time - on both flat and convex edges. Chef is also adjustable for blade width.



Chef has two grinding tables; one for short blades and one for long blades. The grinding tables hold the blade in position with magnets, ensuring the blade cannot move and producing high precision with sharpening Please note the pictures in the album in "Chef" under "slipverktyg" ( grinding tools).



The knives and the arrowhead are ground with Chef. To demonstrate the degree of control possible with Chef, the lower knife has 5 facets 1 mm wide, with 0.75 degrees between each facet. As you can easily see, the lines between the facets are straight and clear. That is precision sharpening!



Chef's standard sharpener holder is adjustable in length up to 152 mm. This picture shows Chef with a DMT Diasharp D6CX sharpener, which is 6"X2".

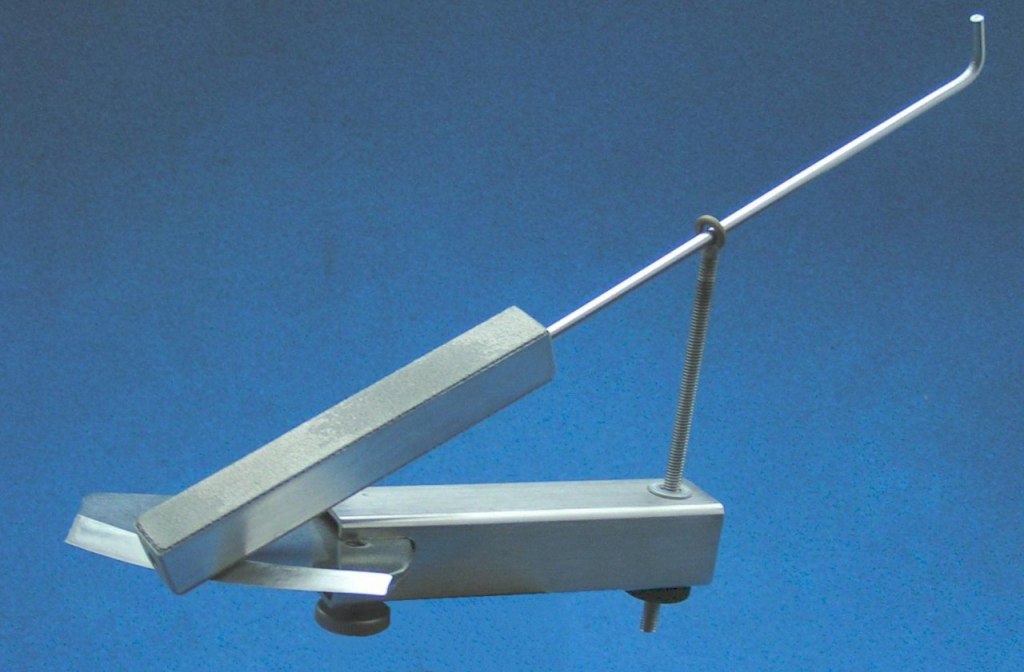

Basic is a small tool for outdoor use on belt knifes with parallel blades. Basic has a sharpening angle screw. 3 full turns = 1 degree. 1/2 a turn is 15/100 parts of 1 degree. This means that you can make a secondary bevel (honing edge) on 2 degrees - and then balance the edge with +/- 1/2 or 1 degree, so it fits just you and your way of using a particular knife.



Basic sharpens both flat and convex edges. Basics are made in stainless steel.





Basic Hunter functions the same as the Basic, but can also sharpen recurved edges. The Hunter sharpens 3 different types of edges; flat, convex and recurved edges. For example, the EKA;s brand belly opener can be sharpened with Basic Hunter.



 All parts are made in Stainless steel, aluminum and brass - Basic and Hunter are designed for outdoor use.









IcePal is designed to sharpen the cutting bits on ice drills. Ice drill bits are the most difficult type of edge to sharpen because they have 3 different dimensions (knife edges have only one dimension edges).

Ice drill edges are concave, and have a twist with the sharpening angle changing along the edge from steep to flat. IcePal can sharpen all three dimension at the same time while you sit out on the ice during fishing, with your gloves on! IcePal is very simple to use, and IcePal gives perfect results on your ice drill edge!











Knife is a small vice that clamps the knife handle, leaving the blade unobstructed to sharpen. With Knife, it is also possible to grind the side of the blade to a zero degree grinding angle. If you also purchase the AxePal, in conjunction with the Knife, you will be able to sharpen many other edged tools with this combination! (See picture.) Knife is a perfect sharpening tool for folders!

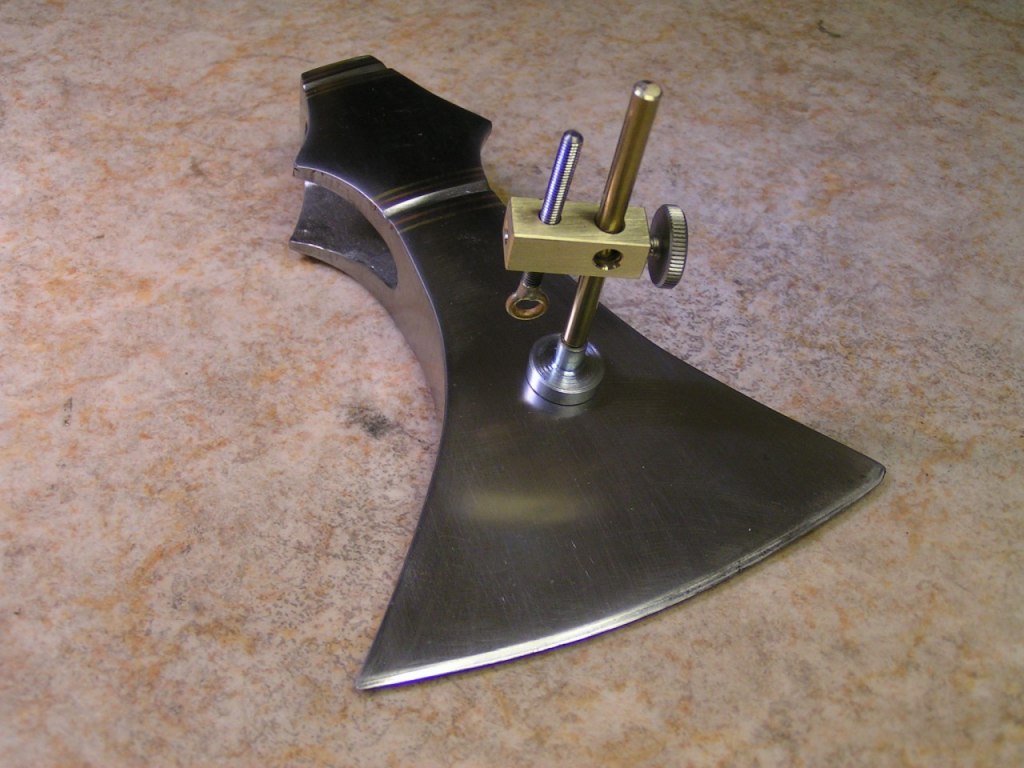

AxePal is a sharpening tool designed specifically for axes and hatchets, all sizes, both flat edges and convex edges. A strong magnetic foot (7 kilo) holds AxePal in position on the axe for great control. AxePal is also perfect for sharpening box and smooth plain steels, chisels, and any other blade tool in your shop.









Extra equipment: (Tillbehör)



· Leather sharpeners (strops) in wanted sizes - up to 24 cm long.



· File holders for all our sharpening tools.

· Needle file holders for Chef.

· Chef can be custom built if wanted. For example, it is possible to build a Chef so that it can grind in zero degrees - up to 25 degrees (and more). The sharpener holder can be made longer, sharpeners, and leather strops, up to 24 cm in length can be used.
